Parameter |

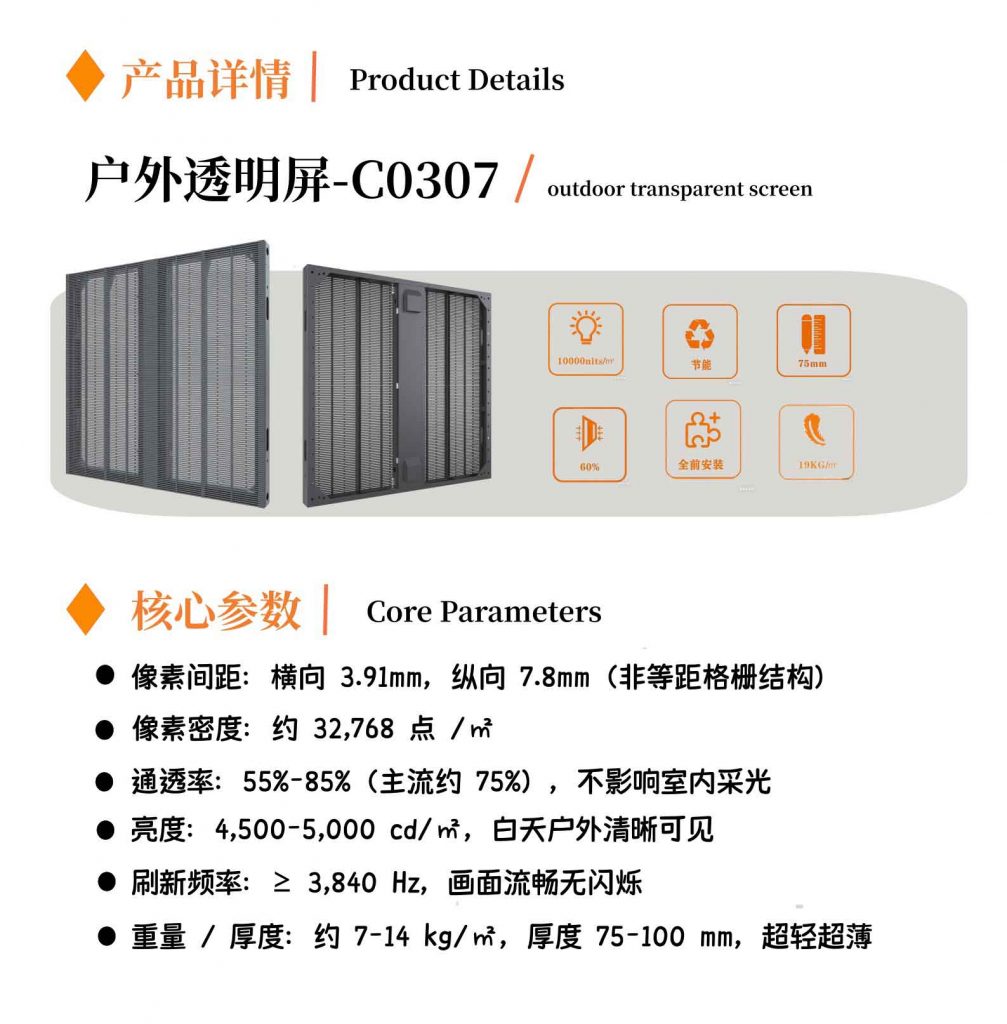

C0307 |
C0510 |
C0612 |
C0707 |
C0715 |
|
Pixel pitch (mm) |
3.91×7.81 mm(H*V) |
5.2×10.4mm(H*V) |
6.25×12.5mm(H*V) |
7.81mm(H*V) |
7.81×15.6mm(H*V) |
|
LED configuration |
SMD1921 |
SMD2727 |
SMD3535 |
SMD2727 |
SMD2727 |
|
Module size(mm) |
500*125 |
||||
|
Module resolution |
128*16 |
96*12 |
80*10 |
64*16 |
64*8 |
|
Cabinet size（mm） |
1000*1000*75 |
||||
|
Cabinet resolution |
256*128 |
192*96 |
160*80 |
128*128 |
128*64 |
|
Cabinet weight(kg/㎡) |
18 |
||||
|
Transparency |
30% |
50% |
35% |
30% |
60% |
|
Brightness(cd/㎡) |
5500 |
6000 |
|||
|
Maximum power consumption |
800W/㎡ |
||||
|
Average power consumption |
266W/㎡ |
||||
|
Refresh rate |
3840Hz |
||||
|
Waterproof rating (front/rear) |
IP65/IP54 |
||||
|
Installation method |
Front/rear |
||||
|
Maintenance method |
Front/rear |
||||
|
Parameter |
C1010 |
C1212 |
C1515 |
C1531 |
||||
|
Pixel pitch (mm) |
10x10mm(H*V) |
12.5×12.5mm(H*V) |
15.625*15.625mm(H*V) |
15.625*31.25mm(H*V) |
||||
|
LED configuration |
SMD2727 |
SMD3535 |
SMD2727 |
DIP346 |
||||
|
Module size(mm) |
500*125 |
500*250 |
||||||
|
Module resolution |
48*12 |
40*10 |
32*8 |
32*8 |
||||
|
Cabinet size（mm） |
1000*1000*75 |
|||||||
|
Cabinet resolution |
96*96 |
80*80 |
64*64 |
64*32 |
||||
|
Cabinet weight(kg/㎡) |
18 |
20 |
||||||
|
Transparency |
30% |
35% |
60% |
50% |
||||
|
Brightness(cd/㎡) |
6000 |
6600 |
5500 |
8000-10000 |
||||
|
Maximum power consumption |
800W/㎡ |
360W/㎡ |
||||||
|
Average power consumption |
266W/㎡ |
100W/㎡ |
||||||
|
Refresh rate |
3840Hz |
|||||||
|
Waterproof rating (front/rear) |
IP65/IP54 |
|||||||
|
Installation method |
Front/rear |
|||||||
|
Maintenance method |
Front/rear |
|||||||
